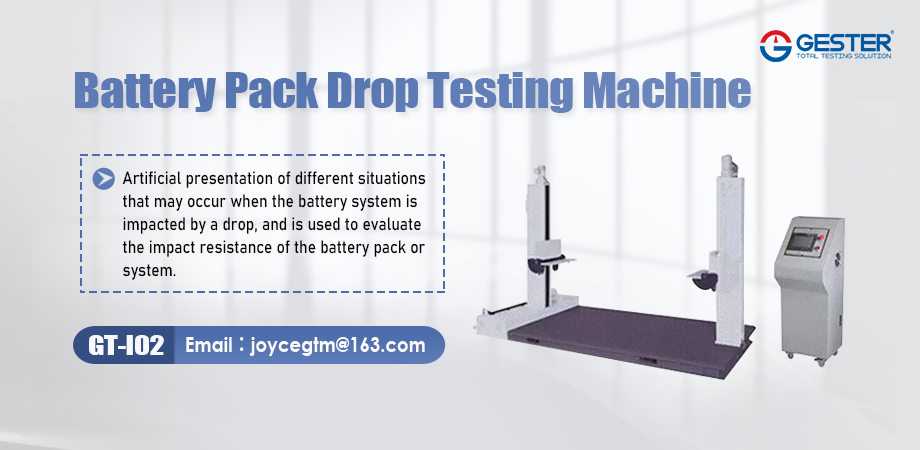

What is the Battery Pack Drop Tester GT-I02

This Battery Testing Machine is used to simulate the impact of drop impact on packaging boxes, single batteries, battery modules, PACK-level battery packs or systems and structural parts during use, transportation, and loading and unloading. Artificial presentation of different situations that may occur when the battery system is impacted by a drop, and is used to evaluate the impact resistance of the battery pack or system.

Next, we will analyze this battery testing machine from the following aspects.

A. About Feature of  the Battery testing equipment
1. System
The equipment adopts double guide rail, electric lifting system.

2. Control modes
Battery Pack Drop Tester has two relatively independent control modes, remote and on-site. The battery lifting height can be preset and displayed, and the release process can be automatically controlled.

3. Different battery sizes.
The device can perform the drop in one arm, meet the drop requirements of the single battery and the battery pack, and realize the battery test of different sizes.

4. Other device system
Explosion-proof device
Lighting system
Video monitoring system
Strong smoke exhaust system
Misoperation-proof system

B. Relevant standards requirement
1. Test object
Battery pack and system

2. Test procedure
Battery testing equipment tests the Battery pack and system most likely to fall in the direction of actual maintenance or installation.
If it is not possible to determine the most likely fall direction, fall in the Z-axis direction, and the battery pack will fall from the height of 1 m to the concrete floor and observe for 2 hours.

3. Accept standard
The battery pack or system has no electrolyte leakage, fire nor explosion.

C. How to Battery pack drop test
Battery pack drop test bench through the way of free fall, the vertical impact test on the specimen. Specimens are free to choose face, edge, angle drop test three states, drop test height can be preset in advance. When the specimen rose to the preset height automatically stop positioning. According to the size of the product to choose from Test the distance between the arm, electric width. The testing machine freeing mechanism is flexible and reliable, to ensure that the specimen in the release of free and free fall on the way without any external force, so as to ensure that the specimen required drop status.
