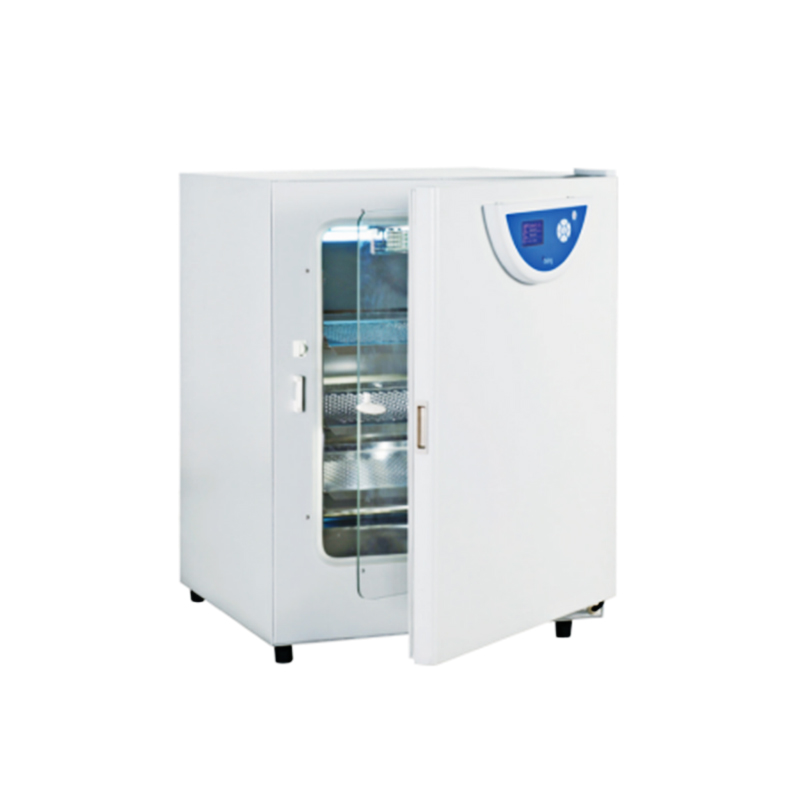

LCD Type Air Jacket CO2 Incubator GT-BM01

null

LCD Type Air Jacket CO2 Incubator GT-BM01

GESTER Instruments covers Ultra Low Freezer, Vaccine Refrigerator, Shaking Incubator, CO2 Incubator, Biological Safety Cabinet, Clean Bench, Atomizing Disinfection Robot, Laboratory incubators, Temperature & Humidity Chamber, Water Bath.

  • PRODUCT DETAILS

Feature:

  • LCD screen controller
  • Temperature control and monitoring system
    A. Incubator temperature control system
    B. Door heating system
    C. Over temp. protection system
  • Cycle fan speed adjustable automatically
  • CO2 inlet control system
  • We supply pressure release valve together with the equipment. It can control the
  • pressure stable.
  • The system has pressure protection function, it prevents over pressure or low pressure to the pipes.
  • Documentation and failure diagnostic display (Option)
  • All data can be stored through RS485 port, if any failures, user can read the diagnostic message and data from computer at any time.

Technical parameter:

Model

GT-BM01-40

GT-BM01-80

GT-BM01-150

GT-BM01-240

Volume

40L

80L

150L

240L

Chamber size W×D×H(mm)

400×286×350

400×450×500

480×530×610

600×630×670

Overall size W×D×H(mm)

590×440×576

590×687×790

670×767×880

790×837×940

Input power

350W

500W

700W

1000W

Standard shelves qty

2pcs

3 pcs

Electrical requirement

AC220V/50Hz

Heating power

Air jacket micro computer PID control

Temp. control range

RT+5 ~ 50℃

Work environment temp

+5 ~ 30℃

Temp. accuracy

±0.1℃

CO2 control range

0 ~ 20%

CO2 control accuracy

±0.1% (IR sensor)

CO2 restore time

(Door open 30s, recovery to 5%)≤3min

Temp. restore time

(Door open 30s, recovery to 37℃)≤ 8min

Related humidity

Nature vaporate > 95%(Can equip with related humidity digital display)

Standard shelves qty

2pcs

3 pcs

Note: All parameters are measured in 25 degree.
