lab vaccine storage freezers -86℃ biomedical freezer
GESTER Instruments covers Ultra Low Freezer, Vaccine Refrigerator, Shaking Incubator, CO2 Incubator, Biological Safety Cabinet, Clean Bench, Atomizing Disinfection Robot, Laboratory incubators and other biomedical machines and lab equipment.
- PRODUCT DETAILS

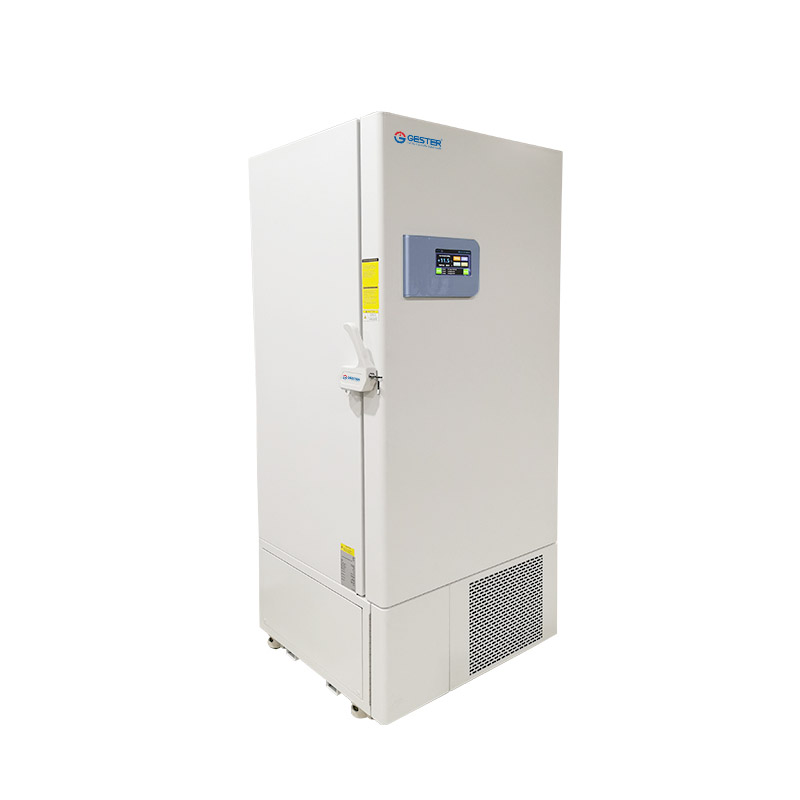

Vaccine Freezer Product Presentation
Application
lab freezers is specially designed and manufactured for long term storage of various biological product, including viruses, germs, erythrocytes, leucocytes and cutis, Applications can be found in blood banks, hospitals, epidemic prevention services, and research institutes, laboratories in electronic and chemical plants, bio-logical engineering institutes and marine fishery companies.
vaccine freezer Model Option
|
Model |
GT-F59-390 |
GT-F59-490 |
GT-F59-650 |
GT-F59-770 |
|
Temperature range |
-50 ～ -86℃ |
|||
|
Nominal capacity |
390L |
490L |
650L |
770L |
|
Exterior dimensions (mm)W x D x H |
909 x 797 x 1990 |
900 x 929 x 1990 |
1091 x 929 x 1990 |
1091 x 1053 x 1990 |
|
Interior dimensions (mm)W x D x H |
589 x 505 x 1310 |
589 x 637 x 1310 |
780 x 637 x 1310 |
780 x 760 x 1310 |
|
Door opening (mm) W x H |
589 x 1310 |
589 x 1310 |
780 x 1310 |
780 x 1310 |
|
Insulation thickness (mm) |
126 |
|||
|
Exterior finishing |
White plastic coated galvanised steel |
|||
|
Interior finishing |
Stainless steel |
|||
Vaccine freezer Key Specification
|
Model |
GT-F59-390 |
GT-F59-490 |
GT-F59-650 |
GT-F59-770 |
|
Inner door |
4 |
|||
|
Shelves |
3 |
|||
|
Levels |
4 |
|||
|
Ring latch hole |
Yes |
|||
|
Mechanical lock |
Yes |
|||
|
Data logger |
Yes |
|||
|
Battery |
Yes |
|||
|
Interior chamber temperature probe |
Yes |
|||
|
Vent port |
Yes |
|||
|
Gasket heating |
Yes |
|||
|

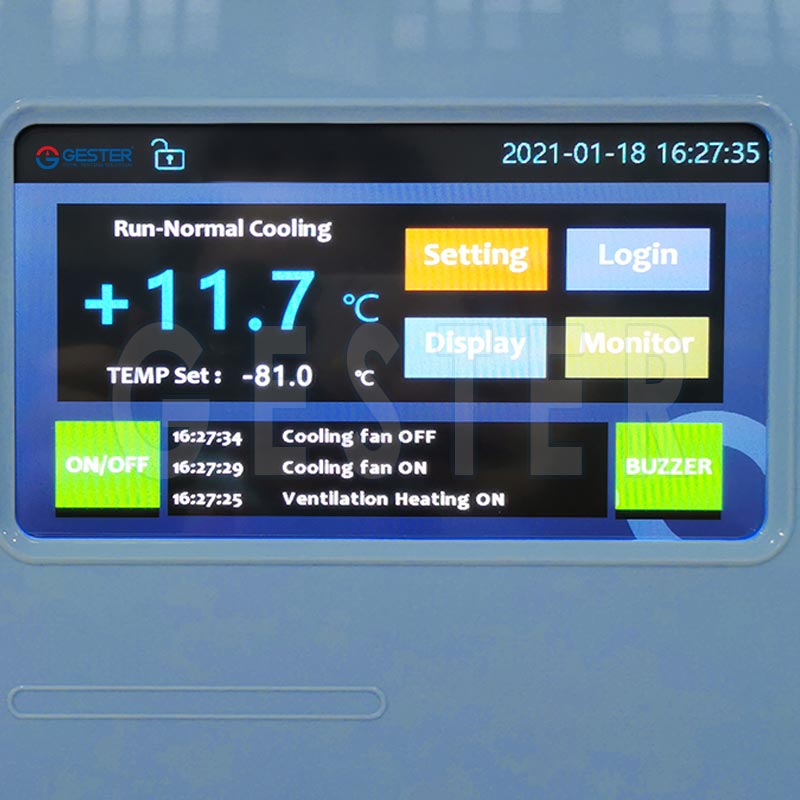

Controller type |
Touch screen |
|||
|
Refrigerant type |
Non HCFC |
|||
|
Power |
1phase AC220V 50Hz, 1300W |
|||
|
Weight 〔kg〕 |
283 |
325 |
354 |
490 |
|
High condenser temperature alarm |
Yes |
|||
|
Power failure alarm |
Yes |
|||
|
Temperature sensor failure alarm |
Yes |
|||
|
Low battery alarm |
Yes |
|||
|
High / Low temperature alarm |
Yes |
|||
|
Door open alarm |
Yes |
|||
|
Sound pressure〔dB〕 |
≤ 53 |
|||
|
Cooling time〔h〕 |
≤ 8 |
|||
|
Minimal temperature〔℃〕 |
-86 |
|||
|
Temperature uniformity〔℃〕 |
≤ 6 |
|||
|
Optional accessories |
Racks |
|||
|
BOX_A, 9*9 (for 2ml) |
||||
