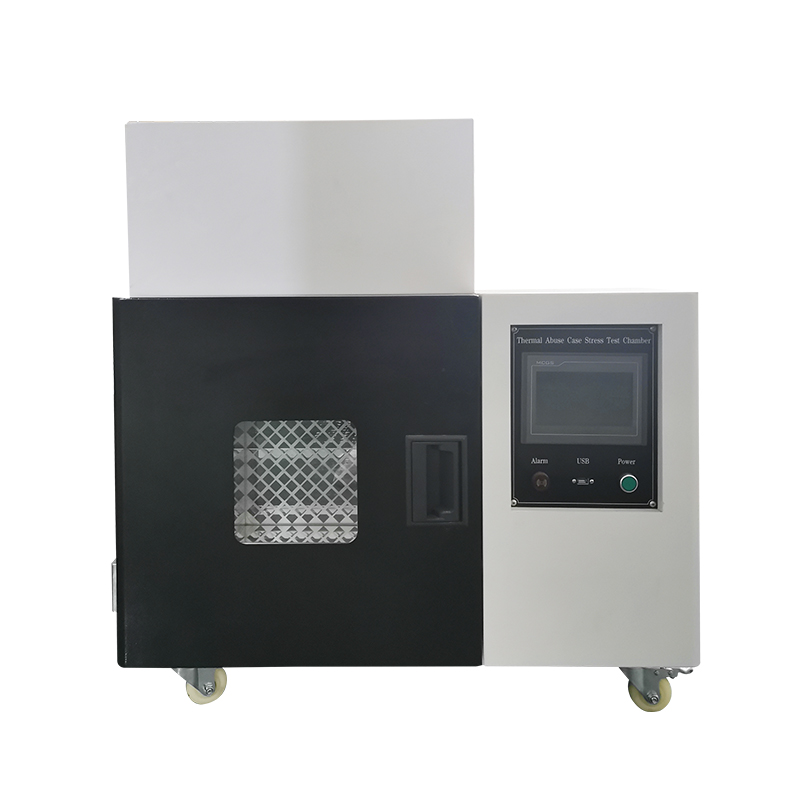

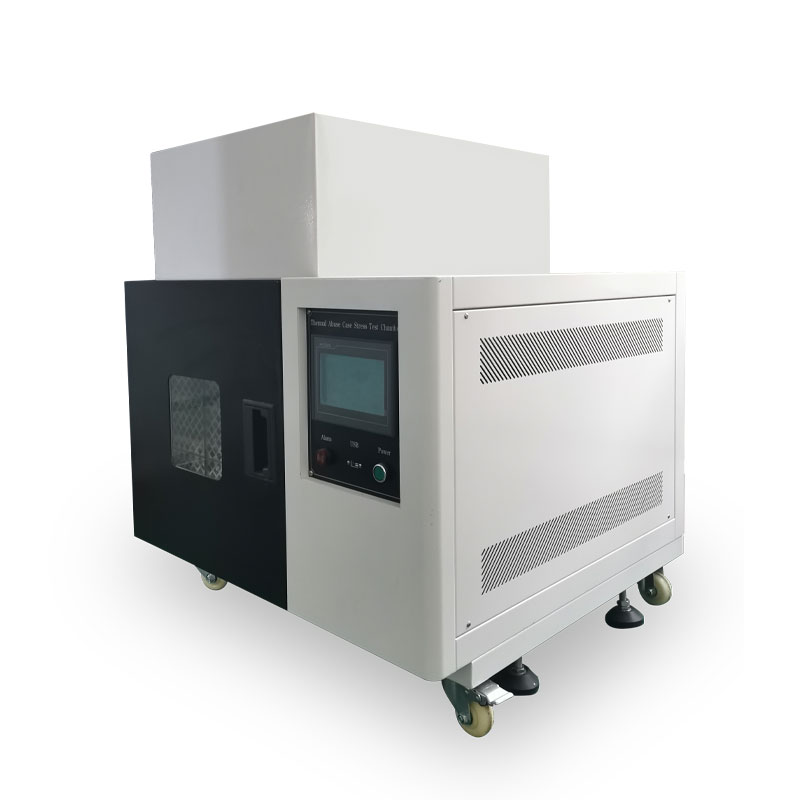

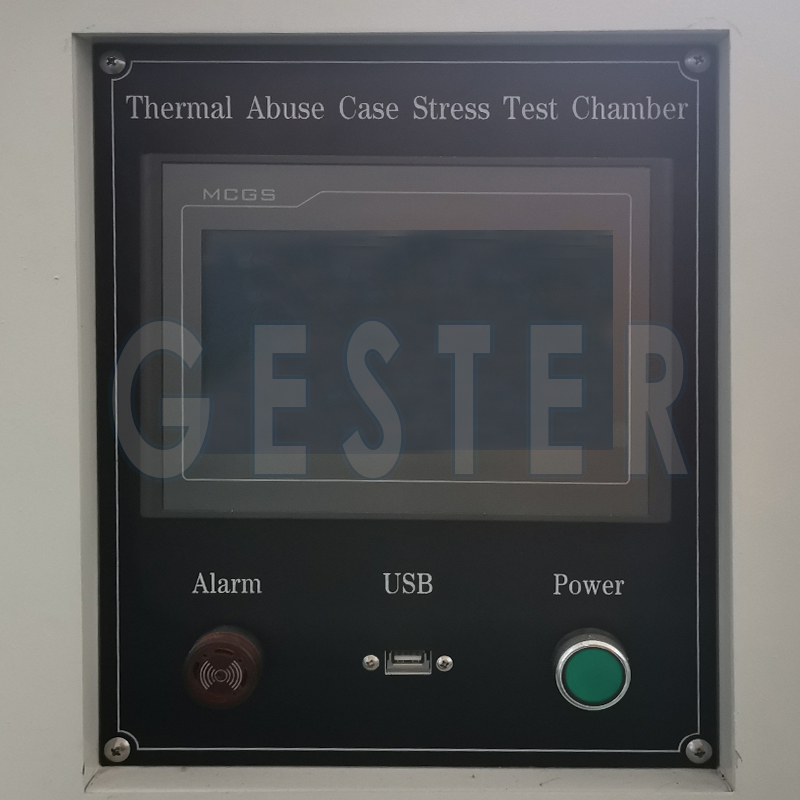

Battery Overcharge tester GT-I16

Battery test chamber is made of steel material with good texture and anti explosion effect. Use for consumer batteries (such as cell phone battery, button battery, rechargeable battery, car battery ect).

PRODUCT DETAILS

Battery Overcharge tester Applications

Items	Values
AC input	AC 220V ±10% 50Hz / AC 110V ±10% 50Hz
Resolution	AD：16bit；DA：16bit
Input impendence	≥ 500MΩ (power on), LC=100uA(power off)
Input power	500 w
Features	4 ranges, high acquisition frequency, high accuracy
Channels control mode	Independent control
Voltage	Voltage output	Charge：0.7 V~5V；Discharge：0.7 V~5V（0.5m data wire）
	Lowest output voltage	0.7 V（0.5m data wire）
	Accuracy	± 0.02% of FS
	Stability	±0.005% of FS
Current	Current output ranges	Range 1: 0.1uA---150uA
		Range 2：150uA---5mA
		Range 3：5mA---150mA
		Range 4: 150mA---5A
	Accuracy Stability	± 0.02% of FS
		Range 1: ± 30nA
		Range 2：± 1uA
		Range 3：± 30uA
		Range 4: ± 1mA
		±0.005% of FS
Power	Output power/CH	25W
Power	Stability	± 0.01% of FS
Time	Current response time	<= 100μS (10% to 90% or 90% to 10%);
Time	Testing step time range	>=10ms
Data record	Data record conditions	Time △t：>=1ms
