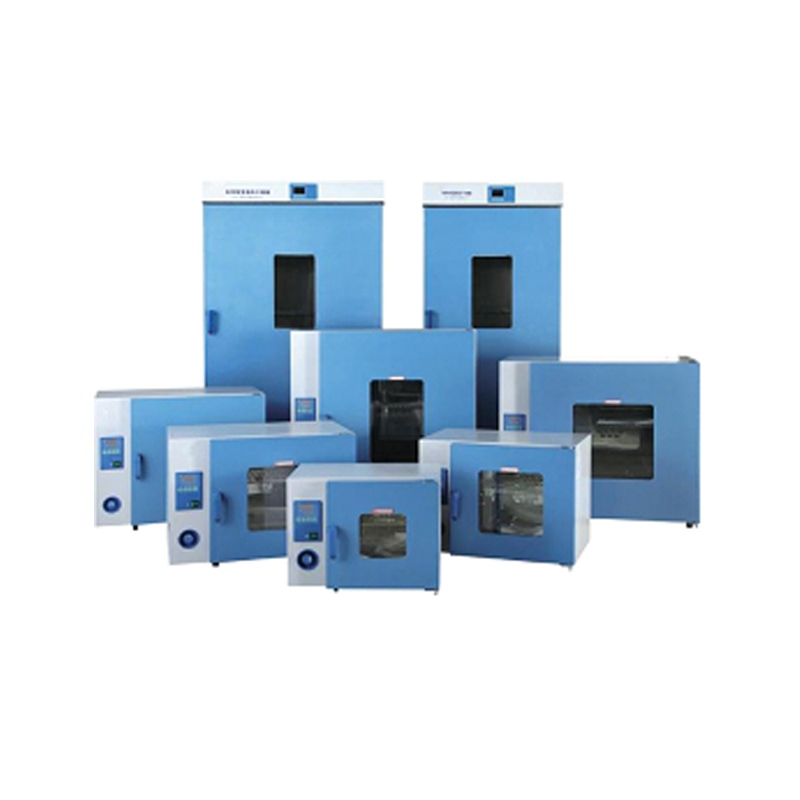

LED Microprocessor Controller 200℃ or 250℃ Drying Oven GT-BM10A&B
GESTER Instruments covers Ultra Low Freezer, Vaccine Refrigerator, Shaking Incubator, CO2 Incubator, Biological Safety Cabinet, Clean Bench, Atomizing Disinfection Robot, Laboratory incubators, Temperature & Humidity Chamber, Water Bath.
- PRODUCT DETAILS
Provided for desiccation, torrefaction, wax-melting and sterilization in mining industry, laboratories and scientific research institutes.
Features:
- 304 stainless steel, mirror polishing processing, easy to clean and maintain.
- PID controller with over temperature alarm and timing function ensures precise and reliable control.
- Air circulation system with specific air flow channel ensures a good temperature uniformity performance.
- Silicon door gasket with long lifetime, and easy to change.
- Adamper adjustment in the front ensures the gas convection enough in working chamber.
Option
- Independent over-temperature alarm system ensures experiments running safely.
- RS 485 connector can connect computer to save the data via software.
Specifications:
|
Model |
GT-BM10B-16 |
GT-BM10B-30 |
GT-BM10B-50 |
GT-BM10B-80 |
GT-BM10B-136 |
GT-BM10B-220 |
GT-BM10B-420 |
GT-BM10B-620 |
GT-BM10B-1000 |
|
Power Consumption |
500W |
850W |
1100W |
1550W |
2050W |
2450W |
3100W |
4000W |
5200W |
|
Chamber Volume |
16L |
30L |
50L |
80L |
136L |
220L |
420L |
620L |
1000L |
|
Interior Dimension (W×D×H)mm |
250×260×250 |
340×320×320 |
420x395x350 |
450×400×450 |
550×450×550 |
600×500×750 |
640×585×1355 |
840×600×1355 |
820×730×1600 |
|
Exterior Dimension (W×D×H)mm |
530×370×420 |
620×440×490 |
720x530x520 |
740×530×630 |
840×580×730 |
880×630×930 |
780×730×1780 |
980×800×1880 |
1050×890×2070 |
|
Shelves |
2(pcs) |
2(pcs) |
2(pcs) |
3(pcs) |
4(pcs) |
||||
|
Power Supply |
1phase 220V 50Hz |
3phases 380V , 50Hz |
|||||||
|
Timing Range |
0~9999min |
||||||||
|
Temp. Range |
RT+10℃ ~250℃ |
||||||||
|
Display Resolution |
0.1℃ |
||||||||
|
Temp. Stability |
±1℃ |
||||||||
|
Temp.uniformity |
±3%（at 100℃） |
||||||||
|
Ambient Temp. |
+5~40℃ |
||||||||
|
Model |
GT-BM10A-27 |
GT-BM10A-56 |
GT-BM10A-96 |
GT-BM10A-140 |
GT-BM10A-200 |
|
Power Consumption |
850W |
1000W |
1400W |
2000W |
2200W |
|
Chamber Volume |
27L |
56L |
96L |
140L |
200L |
|
nterior Dimension (W×D×H)mm |
320×300×355 |
400×330×415 |
450×430×505 |
520×500×575 |
570×560×640 |
|
Exterior Dimension (W×D×H)mm |
460×520×660 |
540×550×720 |
590×650×810 |
660×720×880 |
710×780×945 |
|
Shelves |
2(pcs) |
3(pcs) |
|||
|
Electrical Requirement |
1phase 220V 50HZ |
||||
|
Temperature Range |
RT+10 ～ 200℃ |
||||
|
Display Resolution |
0.1℃ |
||||
|
Temperature Stability |
±1℃ |
||||
|
Ambient Temperature |
+5 ～ 35℃ |
||||
